Cable recycling systems

Our cable recycling equipment and systems grind and shred the cable, then the shredded material falls onto a so-called vibrating separator table, where the machine uses air to separate the cable sheath (PVC, PE, rubber, etc.) from the copper or aluminum.

Plants


T150

ELECTRIC CONSUMPTION: 19 kW
OVERALL DIMENSIONS:
larghezza – width 1700 x 1350 mm height h = 2300 mm + filtro 800×800 mm h=3100 mm
AVERAGE HOURLY PRODUCTION: 150 kg/h incoming

T150

T300

ELECTRIC CONSUMPTION: 40 kW
shredder and conveyor belts not included
OVERALL DIMENSIONS: Can be adapted to the place of installation thanks to the separate construction of the machines of which it is made up
AVERAGE HOURLY PRODUCTION: 300 kg/h incoming

T300

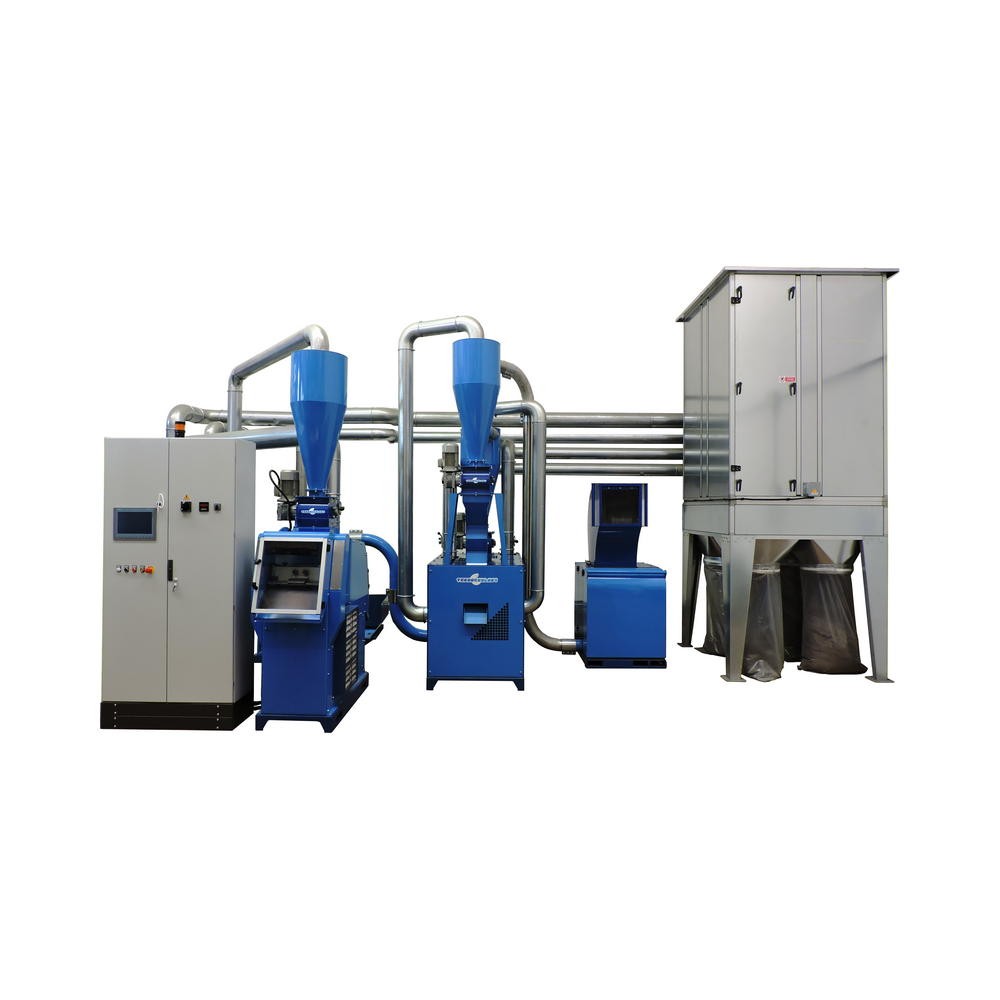

T500

ELECTRIC CONSUMPTION: 75 kW
shredder not included
OVERALL DIMENSIONS: Can be adapted to the place of installation thanks to the separate construction of the machines of which it is made up
AVERAGE HOURLY PRODUCTION: 500 Kg/h incoming

T500

T1000

ELECTRIC CONSUMPTION: 105 kW
shredder not included
OVERALL DIMENSIONS: Can be adapted to the place of installation thanks to the separate construction of the machines of which it is made up
AVERAGE HOURLY PRODUCTION: 1000 Kg/h incoming

T1000

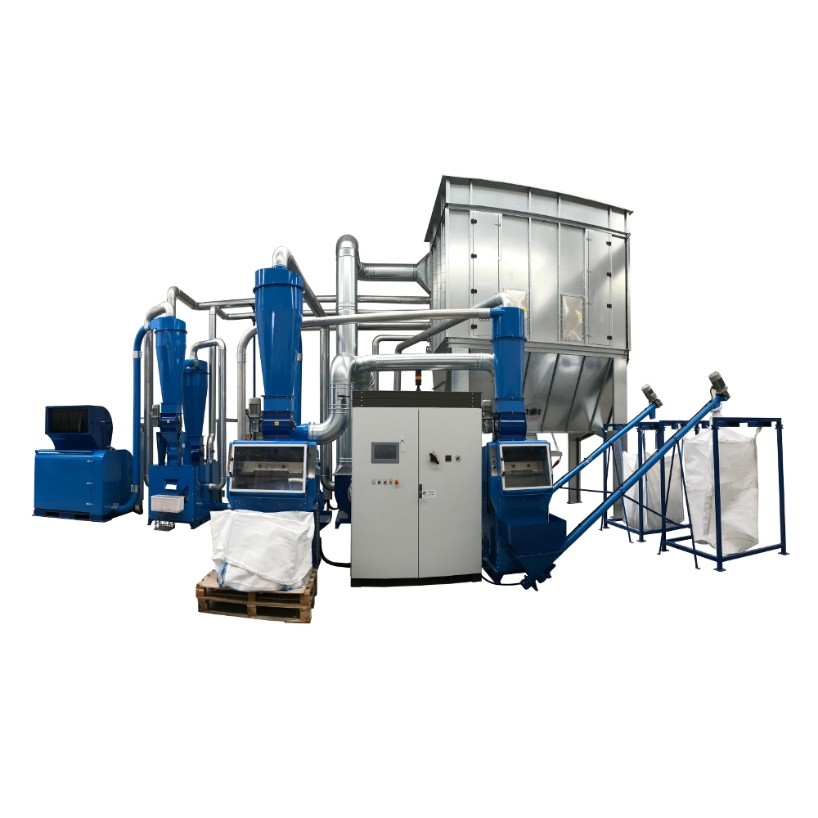

T1500

ELECTRIC CONSUMPTION: 160 kW
shredder not included
OVERALL DIMENSIONS: Can be adapted to the place of installation thanks to the separate construction of the machines of which it is made up
AVERAGE HOURLY PRODUCTION: 1500 Kg/h incoming

T1500
